Temperature Curves

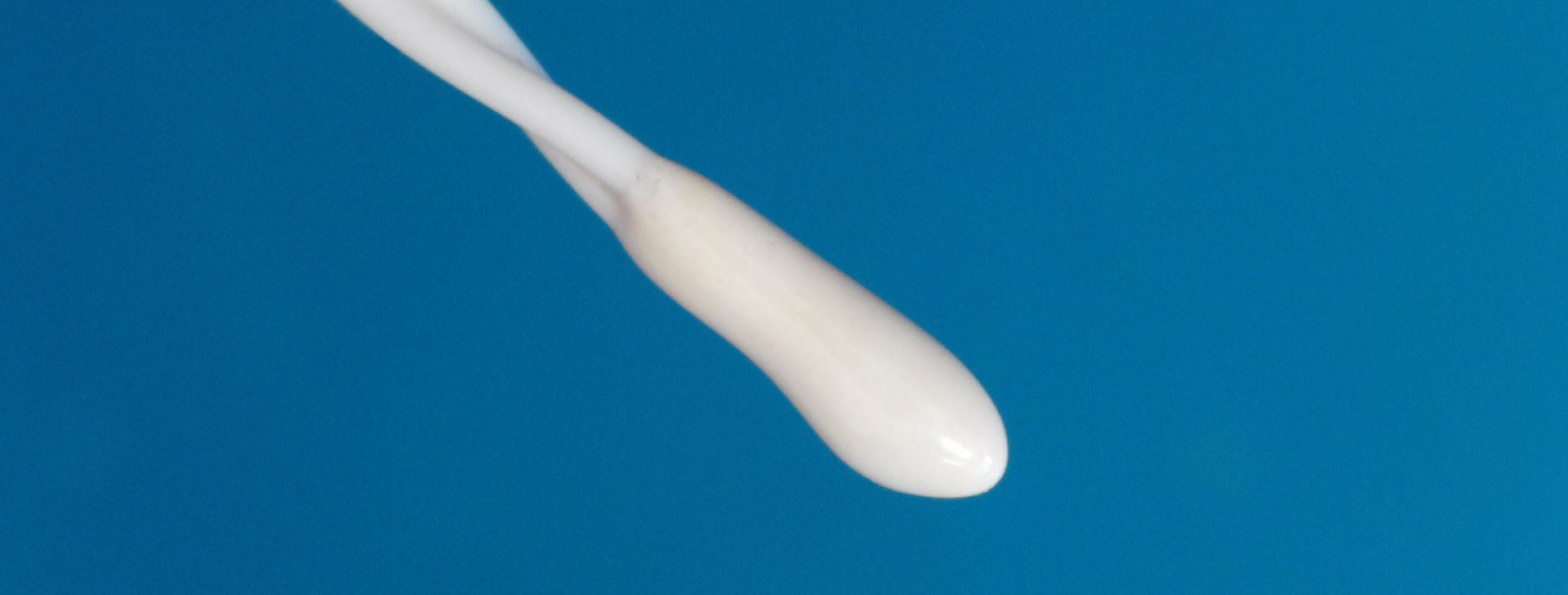

Twisted thermistor leads

North Star Sensors offers multiple R/T curves so engineers can match the thermistor material to the target operating range and application behavior.

Curve selection matters

The best R/T curve depends on response time, application temperature range, and finished coated dimensions.

Named by NTC value

North Star Sensors R/T curves are named after the negative temperature coefficient at 25 °C.

Engineering guidance available

Application engineers can help select the optimal curve material for the application.

North Star Sensors offer six R-T curves to select from. Which R-T curve to select depends on a variety of parameters such as response time, application temperature range, and finished coated dimensions. If needed, North Star Sensors application engineers will help you select the optimal R-T curve material for your application.

North Star Sensors R-T curves are named after the NTC (Negative Temperature Coefficient) value at 25 °C. For example, Curve 44 has an NTC value of -4.4%/°C at 25 °C.

Use the comparison chart and the per-curve reference files below to move from quick curve selection into detailed ratio tables, R/T specifications, and calculator files.

Key Details

  • Curve 44 is one of the most versatile and widely specified materials
  • Curve 44 commonly spans 1 kΩ to 100 kΩ
  • Curve 35 supports lower resistance ranges from 50 Ω to 500 Ω
  • Curve 38 typically spans 100 Ω to 1.5 kΩ
  • Curve 40 10 kΩ devices are widely used in several industries
Curve: 44 35 38 40 43 47
0 °C / 70 °C Ratio: 18.65 10.38 12.96 14.82 17.73 22.64
25 °C / 85 °C β: 3978 3192 3486 3694 3943 4262
Resistance
Range:
1 kΩ - 100 kΩ 50 Ω - 500 Ω 150 Ω - 1.5 kΩ 5 kΩ - 50 kΩ 20 kΩ - 50 kΩ 10 kΩ - 150 kΩ

Curve Reference Files

Use the per-curve downloads below for detailed 1 °C Rt / R25 tables, full R/T specifications, and resistance-versus-temperature calculator spreadsheets.
